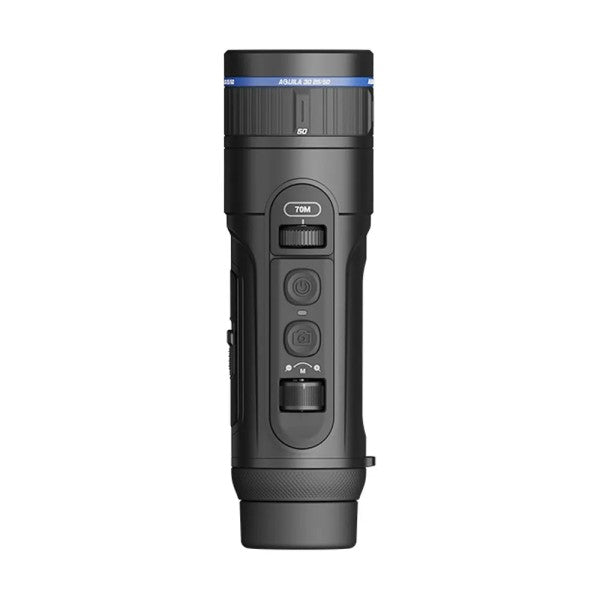

Conotech Aquila 3D 25/50 Wärmebildgerät

Conotech Aquila 3D 25/50 Wärmebildgerät

€2.049,00
€2.049,00 €2.049,00
Sale Ausverkauft
inkl. MwSt. Versand wird beim Checkout berechnet
Produktinformationen "Conotech | Aquila 3D 25/50 | Wärmebildgerät"
Model Aquila 325 Aquila 335 Aquila 3D 19/38 Aquila 3D 25/50 Aquila 350LIIR Aquila 635 Aquila 6D 19/38 Aquila 6D 25/50 Aqulia 650LIIR
Main Characteristics
Detector Uncooled Vox
Resolution 384x288
Frame rate 50HZ
Pixel 12μm
Spectral range 8-14μm
NETD 25mK
Optical Characteristics
Objective lens 25mm 35mm 19mm/38mm 25mm/50mm 50mm 35mm 19mm/38mm 25mm/50mm 50mm
Magnification 2.4x 3.3x 1.8x-3.7x 2.4x-4.8x 4.8x 1.9x 1.0x-2.0x 1.4x-2.7x 2.7x
FOV(H×V), m @100m 18.4×13.8 13×9.9 12.1×9.1 / 24.3×18.2 9.2×6.9 / 18.4×13.8 9.2×6.9 22×17.5 20.2×16.2 / 40.4×32.3 30.7×24.6 / 15.35×12.3 15.35 ×12.3
Close-up range 2m
Dioptre adjustment ±5D
Functions
Smooth zoom 2.4x-10x 3.3x-13.8x 1.8x-7.5x / 3.7x-15.4x 2.4x-10x / 4.8x-20x 4.8x-20x 1.9x-10x 1.0x-5.2x / 2.0x-10.4x 1.4x-7.3x / 2.7x-14x 2.7x-14x
Palettes 8
Audio recording YES
Firmware update via APP YES
Photo/Video YES
Display
Type OLED
Resolution 1024x768
External video WIFI
Built-in memory 32GB
Power Supply
Battery Dual Battery
External power supply 5V USB-C
Operating time (at t=22°C) 10h
Physical Characteristics
Weight
(without external battery)		 ≤540g ≤540g ≤570g ≤600g ≤560g ≤540g ≤570g ≤600g ≤560g
Dimension ≤φ61x179mm ≤φ61x179mm ≤φ61x205mm ≤φ61x205mm ≤φ61x193mm ≤φ61x179mm ≤φ61x205mm ≤φ61x205mm ≤φ61x193mm
Environmental Compatibility
Ingress protection rating IP67
Operating temperature 30
Storage temperature 30
Laser Rangefinder (Only available in Aquila 350LIIR and 650LIIR)
Safety class for laser
equipment according to
IEC 60825-1:2014		 / 1 / 1
Measuring range / 5-1200m / 5-1200m
Measurement accuracy / ± 1m / ± 1m
Model Aquila 325 Aquila 335 Aquila 3D 19/38 Aquila 3D 25/50 Aquila 350LIIR Aquila 635 Aquila 6D 19/38 Aquila 6D 25/50 Aqulia 650LIIR
Main Characteristics
Detector Uncooled Vox
Resolution 384x288
Frame rate 50HZ
Pixel 12μm
Spectral range 8-14μm
NETD 25mK
Optical Characteristics
Objective lens 25mm 35mm 19mm/38mm 25mm/50mm 50mm 35mm 19mm/38mm 25mm/50mm 50mm
Magnification 2.4x 3.3x 1.8x-3.7x 2.4x-4.8x 4.8x 1.9x 1.0x-2.0x 1.4x-2.7x 2.7x
FOV(H×V), m @100m 18.4×13.8 13×9.9 12.1×9.1 / 24.3×18.2 9.2×6.9 / 18.4×13.8 9.2×6.9 22×17.5 20.2×16.2 / 40.4×32.3 30.7×24.6 / 15.35×12.3 15.35 ×12.3
Close-up range 2m
Dioptre adjustment ±5D
Functions
Smooth zoom 2.4x-10x 3.3x-13.8x 1.8x-7.5x / 3.7x-15.4x 2.4x-10x / 4.8x-20x 4.8x-20x 1.9x-10x 1.0x-5.2x / 2.0x-10.4x 1.4x-7.3x / 2.7x-14x 2.7x-14x
Palettes 8
Audio recording YES
Firmware update via APP YES
Photo/Video YES
Display
Type OLED
Resolution 1024x768
External video WIFI
Built-in memory 32GB
Power Supply
Battery Dual Battery
External power supply 5V USB-C
Operating time (at t=22°C) 10h
Physical Characteristics
Weight
(without external battery)		 ≤540g ≤540g ≤570g ≤600g ≤560g ≤540g ≤570g ≤600g ≤560g
Dimension ≤φ61x179mm ≤φ61x179mm ≤φ61x205mm ≤φ61x205mm ≤φ61x193mm ≤φ61x179mm ≤φ61x205mm ≤φ61x205mm ≤φ61x193mm
Environmental Compatibility
Ingress protection rating IP67
Operating temperature 30
Storage temperature 30
Laser Rangefinder (Only available in Aquila 350LIIR and 650LIIR)
Safety class for laser
equipment according to
IEC 60825-1:2014		 / 1 / 1
Measuring range / 5-1200m / 5-1200m
Measurement accuracy / ± 1m / ± 1m
